Threaded rods

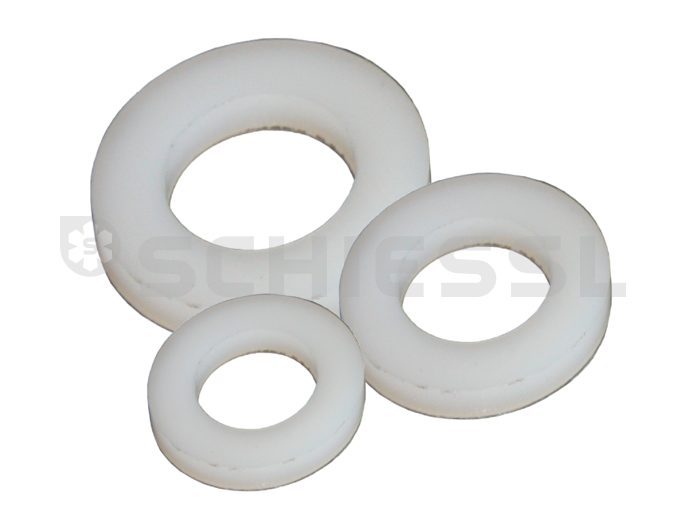

Washers nylon 6.6 M8
Icon. Image similar to product.
Order No.: 336.6322
Manufacturer number: 3.366.322
Manufacturer: Bluemay
More in this category: Threaded rods
Loading
One click to the most important information:
Features
- Material: Nylon 6.6
- Rockwell hardness: R 112-R 120
- Durometer hardness: D 80-D 85
- Flammability: self-extinguishing
Technical data
Dimensions
Outer diameter
17 mm
Thread dimension
M8
Inner diameter
8,4 mm
General information
Flexural strength
86 bis 97
N/mm²
Elasticity mode
1733 bis 2744
N/mm²
Type
Gewindestange
Thermal conductivity
0,24
W/(m*K)
Tensile strength
62 bis 83
N/mm²
Temperature data
Melting point
260 °C
Technical modifications reserved. Product images may differ from the actual product and are meant for demonstration purposes only. Absolutely no liability can be assumed for possible indication errors and errors in the manufacturers’ information.
