Flexible impulse piping

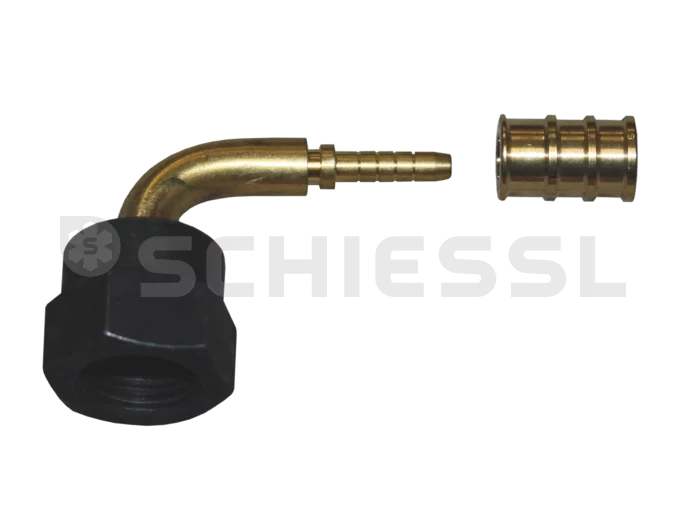

Gomax press connection 5/8 UNF KCA04M Quadra DN4, 90 ° (1Pg. = 10pcs.)

Order No.: 745.1044

Manufacturer number: KCA04M

Manufacturer: Gomax

More in this category: Flexible impulse piping

One click to the most important information:

Accessories / Replacement parts
Technical data

Description

Press connection without opener 5/8 UNF, 4 mm, bent 90 °, (1 pack = 10 pieces). A professional and permanently tight system for the execution of impulse lines with flexible hose. Ideal for connecting pressure switches, pressure gauges, etc. The Gomax system has been used by many OEM companies ...

Features

Innenmaterial: Thermoplastisches Polymer
Gewebeeinlage: Polyestergeflechtet
Außenhülle: Polyester
Flammfestigkeit: Klasse HB, UL 94

Accessories / Replacement parts
Technical data

Accessories / Replacement parts

Case

Gomax case empty MR293

Order No.: 745.1066
Dichtringe

Gomax copper sealing rings 7/16 UNF WRP502 Quadra, (1Pg.=50pcs.)

Order No.: 745.1050
Replacement blades

Gomax replacement blades WXB004 Quadra, for WXA004 (1Pg.=2pcs.)

Order No.: 745.1048
Schneidezange

Gomax cutting pliers WXA004 Quadra

Order No.: 745.1049
Schraderventildrücker

Gomax Schrader valve pusher WTD2Z1 Quadra, (1Pg.=50pcs.)

Order No.: 745.1051

Technical data

Outer diameter

5,9 bzw. 8,2 mm

Inner diameter

DN 2 bzw. DN 4

Construction

90°

Media compatibility

Kältemittel CO2 und Öl

Type

KCA04M

Connection

5/8 Zoll

flanging

max. operating pressure

120 bar

Weight net

27 bzw. 43 g/m

Umgebungstemperatur

max.

130 °C

min.

-45 °C
