E-FU-BO compressor packs



The frequency-controlled Bock packaged units work with one or two semi-hermetic compressors from the Pluscom series. The units, specially developed for use in refrigeration systems with changing refrigeration requirements, use a Power Electronics Yaskawa frequency inverter. This allows the refrigeration capacity to be optimally adapted to the respective conditions with continuous operation of the compressor. Other functions include

  • Energy efficiency and space saving: Compared to conventional compressor systems with several compressors, the Bock units offer an energy-efficient and space-saving alternative. -
  • Performance classes: The Bock packaged units are available in six different performance classes and can be used with refrigerants R134a/R513A/R450A/R448A/R449A. The cooling capacity is regulated depending on the suction pressure.
  • How the frequency inverter works: A Power Electronics Yaskawa frequency inverter is used in conjunction with a pressure transmitter to control the system. The pressure transmitter is thermally decoupled on the suction side and records the actual value of the suction pressure. The pack controller controls the cooling capacity of the pack in such a way that the setpoint value of the suction pressure is set as precisely as possible. The frequency converter is included in the scope of delivery of the control cabinet and can be set via the keypad. It is preset, but only a few parameters need to be changed to adapt it to the refrigerant used and the area of application.
  •  Emergency operation and safety: If the frequency inverter malfunctions, it can be manually switched to temporary emergency operation via an additional low-pressure switch.
  • Robust design: The components are mounted on a 2-fold painted and welded steel frame. The compressor set stands on the supplied metal feet. The refrigeration lines are grouped together at the top at the rear for easy installation. - Heated oil separator: To ensure safe operation even with a temporary minimum refrigeration load, the compound is equipped with an oil separator as standard

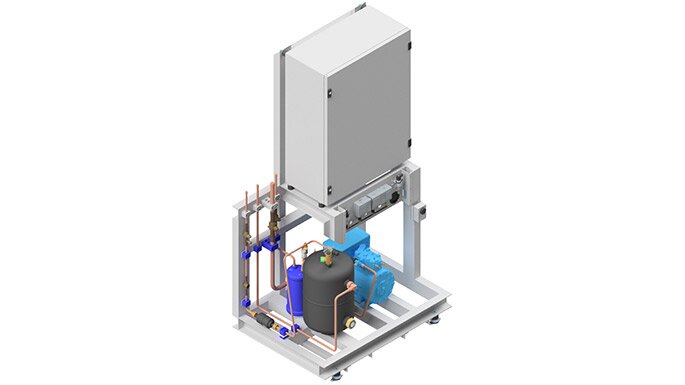

EURO LINE MULTI-COMPRESSOR SETS WITH ONE BOCK-COMPRESSOR

Frequency-controlled Bock packaged units work with a semi-hermetic compressor from the Pluscom series. These units have been specially developed for use in refrigeration systems with changing cooling requirements.

To the articles

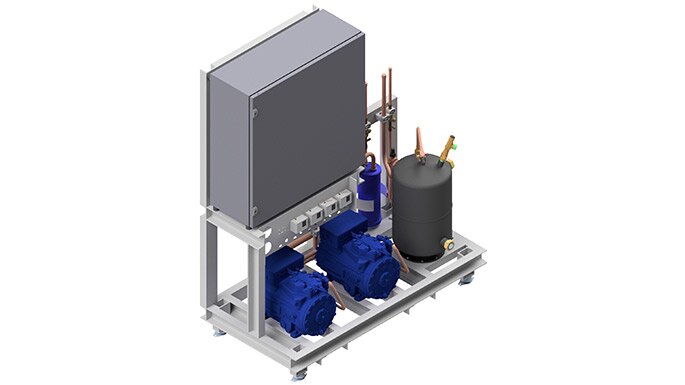

EURO LINE MULTI-COMPRESSOR SETS WITH TWO BOCK-COMPRESSORS

Frequency-controlled Bock compressor banks work with two semi-hermetic compressors from the Pluscom series, whereby one compressor is always frequency-controlled as the lead compressor and the second compressor is switched on by the frequency converter as a follower compressor without control.

To the articles



Advantages

  • Optimum adjustment of the compressor capacity

  • Small minimum cooling capacity

  • Optimum chilled goods temperature and quality

  • Energy savings through better power adjustment at optimum evaporation temperatures

  • Easy to service thanks to simple compressor replacement and the use of standard components

  • Very small space requirement due to compact design

  • Simple installation of heat recovery using a common heat exchanger for all cooling points

  • Bitzer compressor sets are equipped with temperature sensors that can be used to monitor the discharge gas temperature, the total superheat and the outside temperature.

  • Reduction of the installed cooling capacity and thus the investment costs by utilizing the simultaneity factor









Get in touch with us!


Our experts will advise you on your projects:

  • Planning: Together we develop the right concept for your needs.

  • Individual solutions: Every company has different requirements - we will find the optimum solution for you.









Our catalogs: The most important information at a glance

  • Clear tables for a quick comparison of technical data and performance
  • Information on legal regulations Installation instructions



To our catalogues
