Condensate pumps
Aspen Tauwasserpumpe Silent+ Mini Lime Replacement Pack
Icon. Image similar to product.
Icon. Image similar to product.
Icon. Image similar to product.
Order No.: 772.3577
Manufacturer number: FP3322/3
Manufacturer: Aspen
To previous product 772.3530
More in this category: Condensate pumps
One click to the most important information:
Description
Condensate pump Silent+ Mini Lime OEM (o. duct). The Mini Lime system pump is designed to simplify installation. You get a complete system with pump and molded channel, which also holds the insulated copper pipes. By opening the angled cover you can service the pump at any time.
Features
- Max. Flow rate 12 l/h
- Max. Delivery head 10 m (delivery rate 6 l/h)
- 20dB(A) @ 1m

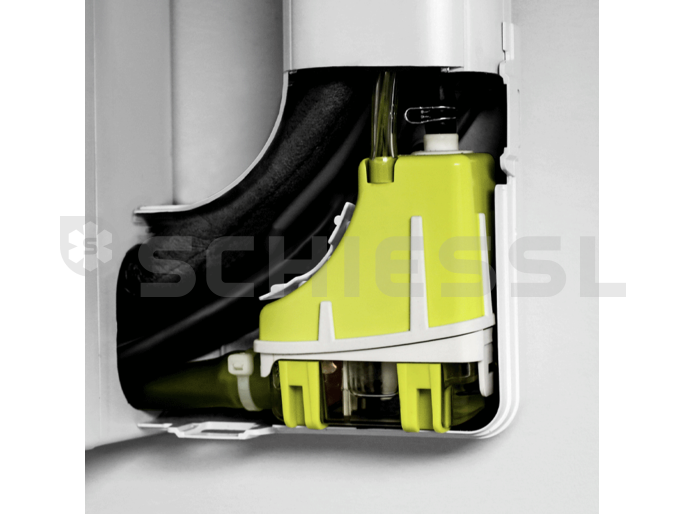

- Pump sits in the angle of the duct system
- Can be installed on left or right side
- Ideal for use in commercial areas where low noise is important
Scope of delivery
- Pump with connector
- 800 mm duct with elbow
- Cover for ceiling passage
- Screws
Accessories / Replacement parts
-
Condensate hose
-
Connection adapter/outlet nozzles
-
Connector
-
Service case
Technical data
Dimensions
Pump module (L x W x H)
99 x 44 x 114 mm
General information
Type
Silent+ Mini Lime
Electrical Data
Supply voltage
230/1/50 V/Ph/Hz
max. safety switch
5
Performance data
max. delivery head
10 m
max. conveying capacity
12 l/h
Pipe connections
Pressure line
Inside
6 mm
Sound data
Sound pressure level
20 dB(A)
Technical modifications reserved. Product images may differ from the actual product and are meant for demonstration purposes only. Absolutely no liability can be assumed for possible indication errors and errors in the manufacturers’ information.
