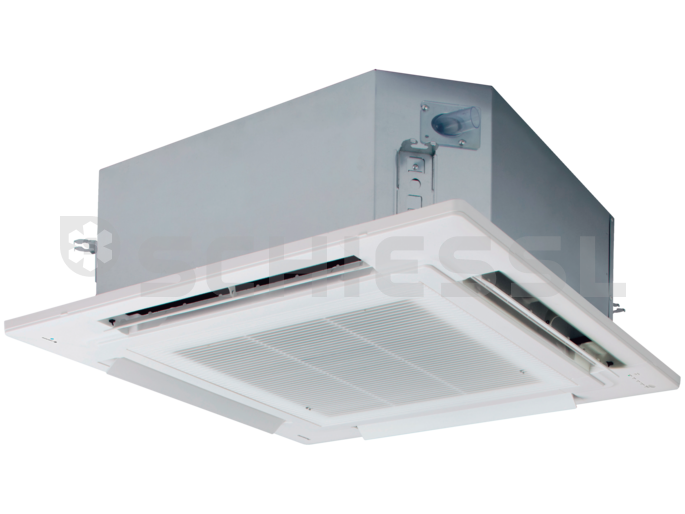

Panasonic air conditioner PACi 4W cassette without cover PU S-71PU2E5B 7.1kW (840x840mm)
Description
The PU2 four-way cassette (90 x 90) sets new standards for energy-efficient operation and healthy and pleasant air. This has been possible thanks to the new design of the unit with more efficient and quieter fans and Nanoe™ X air purification. (Optionally available)
This item does not ...
The PU2 four-way cassette (90 x 90) sets new standards for energy-efficient operation and healthy and pleasant air. This has been possible thanks to the new design of the unit with more efficient and quieter fans and Nanoe™ X air purification. (Optionally available)
This item does not include a ceiling panel cover
Features
- Ceiling height up to 5.0 m
- Condensate pump for delivery head up to 850 mm
- Optional CZ-KPU3A cover with Econavi function as well as activity detection and revolving operation
- Optional nanoe™ X air purification feature specially for commercial air conditioning systems
- DC fan with turbo rotor: ...
- Ceiling height up to 5.0 m
- Condensate pump for delivery head up to 850 mm
- Optional CZ-KPU3A cover with Econavi function as well as activity detection and revolving operation
- Optional nanoe™ X air purification feature specially for commercial air conditioning systems
- DC fan with turbo rotor: efficiency and quiet
- Individual air guide slat control
- For use in dual, trio and quattro systems there are additional models to those listed here with a power rating of 4.5 kW (see Panasonic price list from page 46).
230 V version on request: U-100PZH2E5 758.2209 U-125PZH2E5 U-140PZH2E5
Accessories / Replacement parts
-
Cable remote control
-
Ceiling panel
-
Hotel remote control
-
Infrared remote control
-
Installation kit
-
WLAN interface
Technical data
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
(Niedrig/Mittel/Hoch)
Notes
1) SEER/SCOP values are calculated according to EU Regulation 626/2011 for models with a rated power up to 12 kW and EU Regulation 2281/2016 for models with a rated power above 12 kW.
2) The annual power consumption is based on the standards in EU Regulation 626/2011.
3) Measurement locations: Indoor unit: 1.5 below the ceiling, centrally beneath the unit. Outdoor unit: 1 m in front of the device at a height of 1.5 m. The measured values are based on EUROVENT document 6/C/006-97.
4) Measured from lower edge of ceiling.
