Communications systems

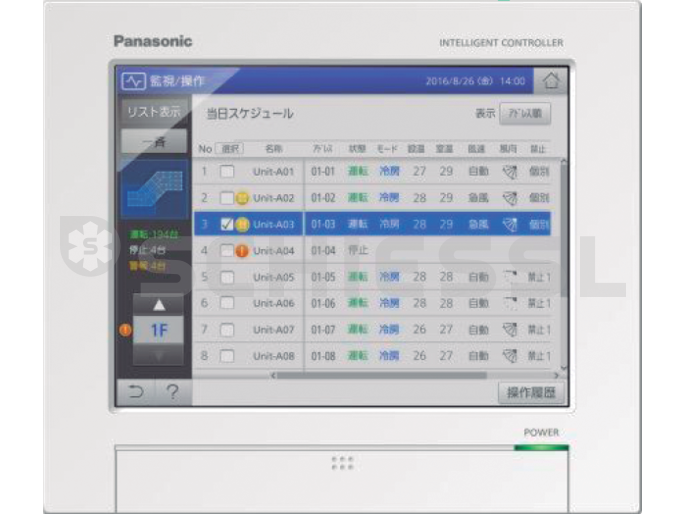

Panasonic communication system ECOi/PACi CZ-256ESMC3 Touch-screen Paneel for 256 indoor units
Icon. Image similar to product.
Order No.: 758.2121
Manufacturer number: CZ-256ESMC3
Manufacturer: Panasonic
More in this category: Communications systems
One click to the most important information:
Description
Intelligent touchscreen for controlling up to 256 indoor units.
Features
- Common control of indoor units belonging to a single zone, tenant or group
- Option to individually control up to 256 indoor units: On/off, operating mode, target temperature, fan speed, fin position, timer control, fault monitoring, remote control block
- The integrated web application allow units ...
- Common control of indoor units belonging to a single zone, tenant or group
- Option to individually control up to 256 indoor units: On/off, operating mode, target temperature, fan speed, fin position, timer control, fault monitoring, remote control block
- The integrated web application allow units to be operated via a web browser over the local network or via the Internet
- Integrated tenant energy usage calculation
- Comprehensive range of timer functions
- Comprehensive range of energy saving functions
- Option to block functions for individual remote controls
- Programmable event-dependant controls
- Graphical data display
- Email fault alerts
- Connect up to 2 P-Link communication systems for up to 128 indoor units (extensible up to 4 P-Links using additional CZ-CFUNC2 communication adapter for up to 256 indoor units)
- External contacts: all units ON/OFF, overall operating report, overall fault report
Technical data
Dimensions
Width
280 mm
Height
240 mm
Depth
20 + 65 mm
General information
Connectable outdoor units
max: 30
Connectable indoor units
64
Resolution
empfohlene Bildschirmauflösung: 1280×1024
Electrical Data
Power consumption
max: 20 VA
Technical modifications reserved. Product images may differ from the actual product and are meant for demonstration purposes only. Absolutely no liability can be assumed for possible indication errors and errors in the manufacturers’ information.
