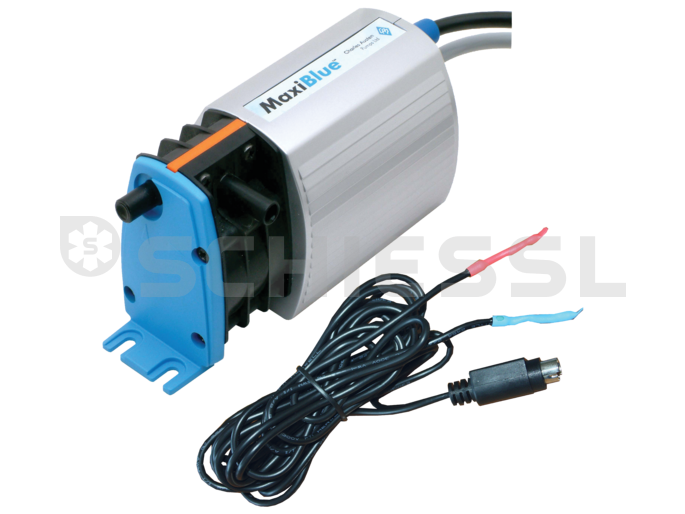

Charles Austen condensate pump Maxi Blue-T with temperature control
More in this category: Condensate pumps
One click to the most important information:
Description
The MaxiBlueTM condensate pump is a rotation membrane pump in the BlueDiamond range for use in split air conditioning systems with a power rating of up to 10 kW and guarantees reliable, uninterrupted operation. The MaxiBlueTM is slim enough to cable ducts, powerful enough for remote ...
The MaxiBlueTM condensate pump is a rotation membrane pump in the BlueDiamond range for use in split air conditioning systems with a power rating of up to 10 kW and guarantees reliable, uninterrupted operation. The MaxiBlueTM is slim enough to cable ducts, powerful enough for remote installation and quiet enough for installation into false ceilings.
The pump unit consists of the pump itself with inlet and outlet nozzles (7.8 mm external diameter), universal adapters for attaching to the drainage line, the internal control circuit, the power supply and a three-core mains cable (2 m).
Version:
MaxiBlueTM with temperature control:
The pump contains a hot and cold sensor for controlling the temperature difference with twin thermistor sensors as well as a cable (2 m) with DIN plug. The condensate pump runs when the system is switched on at a constant temperature difference of 8 °C, regardless of whether or not condensation is being produced. The safety circuit is inactive.
Features
- Entirely self-priming up to 8 m
- No float, no valves or filters - maintenance-free
- Silent and vibration-free operation
- Can safely run dry *
- Problem-free pump down of contaminants
- CE mark
* Dry operation for long periods can reduce the life of the pump
Accessories / Replacement parts
-
Condensate hose
-
Connection adapter/outlet nozzles
-
Connector
-
Drain stick
-
Extension
-
Mounting lugs
-
Muffler
-
Multi tank
-
Tank sensor
-
Temperature sensor
-
Universal adapter
Technical data
blau: neutral an N
grün/gelb: an Erde
