Condensate pumps

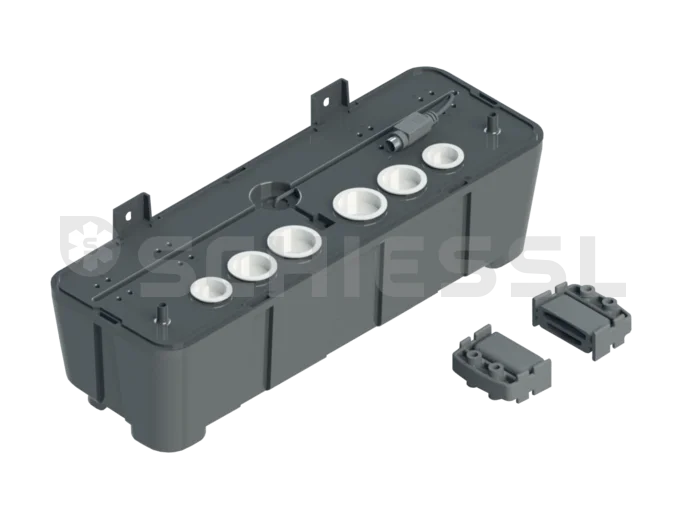

Charles Austen Multi Tank Maxi/MegaBlue C21-014

Order No.: 772.3455
Manufacturer number: C21-014
Manufacturer: Charles Austen

More in this category: Condensate pumps

One click to the most important information:

Description

Multi Tank; Maxi/Mega Blue with filling level control and alarm contact. The new MultiTankTM has been especially developed for multi-unit installations and broadens the application range of the unique rotary membrane pumps: MaxiBlueTM and MegaBlueTM. In combination with the power of these ...

Multi Tank; Maxi/Mega Blue with filling level control and alarm contact. The new MultiTankTM has been especially developed for multi-unit installations and broadens the application range of the unique rotary membrane pumps: MaxiBlueTM and MegaBlueTM. In combination with the power of these pumps, the tank ensures very quiet, powerful and maintenance-free condensate drainage with a wide range of possible applications. The MultiTankTM is provided with proven semiconductor sensor technology for high / low filling levels as well as a sensor with potential-free alarm contact (optionally as normally closed or normally open contact), 2 pcs. vibration-resistant mounting lugs for installing the MaxiBlueTM or MegaBlueTM pump, a variable connection cable for right- or left-sided installation, ventilation hose and screw set.

show more


Features

  • Easy handling through stand or wall mounting
  • Ultra-quiet and vibration-free operation
  • Very high durability with impact-resistant plastic cover
  • Blockage-free, valveless construction
  • 6 variable condensate inlet openings (20 mm to 27 mm), as well as right / left installation
  • CE marked

Technical data

Dimensions
Width
110 mm
Height
125 mm
Length
355 mm
Connections
Tube connection
ID 6,0 mm
Weight
Weight net
0,6 kg
Volume
Total
1,5 l
Technical modifications reserved. Product images may differ from the actual product and are meant for demonstration purposes only. Absolutely no liability can be assumed for possible indication errors and errors in the manufacturers’ information.
