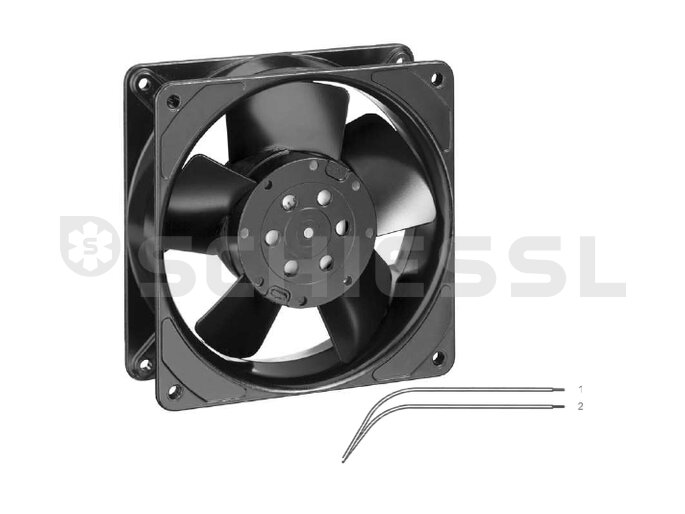

Papst Ventilator axial 4856 ZWU 13W Litze 310mm IP65

Order No.: 126.2124
Manufacturer number: 4856ZWU
Manufacturer: ebmpapst

To previous product 126.2113

More in this category: Ventilators, axial

Loading

One click to the most important information:

Description

Axial fans from ebm-papst are true "space-saving wonders" and move air for heat or cold exchange in a wide variety of devices and systems. Axial fans impress with their low installation depth, low noise level and excellent efficiency and are particularly suitable for flow through heat ...

Axial fans from ebm-papst are true "space-saving wonders" and move air for heat or cold exchange in a wide variety of devices and systems. Axial fans impress with their low installation depth, low noise level and excellent efficiency and are particularly suitable for flow through heat exchangers.

show more


Features

  • Compact dimensions
  • Wide range of designs, dimensions and air capacities
  •
  • Optimum efficiencies and noise development due to sophisticated aerodynamic design of the fan blades
  • Sound pressure level: The distance of the microphone to the intake opening is 1 m
  •
  •
  • Numerous approvals such ...
  • Compact dimensions
  • Wide range of designs, dimensions and air capacities
  •
  • Optimum efficiencies and noise development due to sophisticated aerodynamic design of the fan blades
  • Sound pressure level: The distance of the microphone to the intake opening is 1 m
  •
  •
  • Numerous approvals such as VDE, UL, CSA and CE
  • Large range of accessories for protective grids, basket guards and wall rings
  •
  •
  • Einsatzgebiete: Luft-, Kälte- und Klimatechnik, Automobilindustrie, Windkraftanlagen und Maschinenbau/Ausrüstungsindustrie
  • Motorschutz: Geschützt gegen Überlastung durch Impedansschutz

show more


Accessories / Replacement parts

  • Protective grille
    Papst ventilator protective grille LZ 30
    Order No.: 126.2601

Technical data

Dimensions
Width
119 mm
Height
38 mm
Length
119 mm
General information
Bearing
Kugellager
Type
4856ZWU
Connections
Cable connection
Einzellitzen 310 mm

Electrical Data
Supply voltage
230/1/50 V/Ph/Hz
Performance data
Rotational speed
1700 min-1
Sound data
Sound pressure level
26 dB(A)
Sound power level
4,0 B
Temperature data
Temperature range
-40...+70 °C
Fan data
Power
13 W
Volume flow rate
100 m³/h
