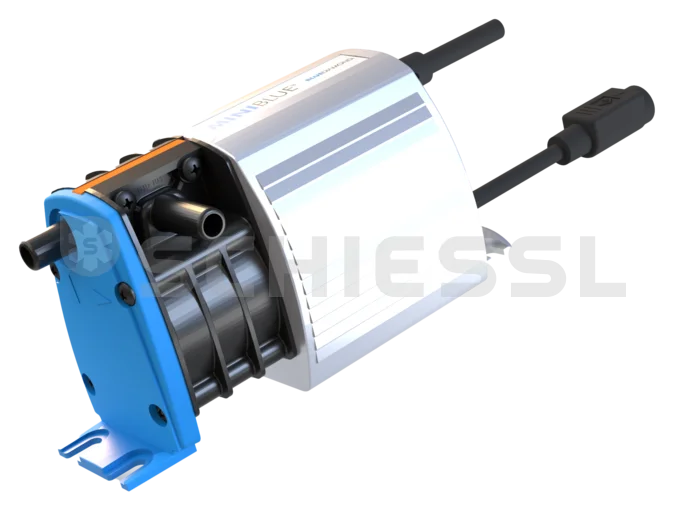

Charles Austen condensate pump X87-504 Mini Blue-ND-T with temperature control
More in this category: Condensate pumps
One click to the most important information:
Description

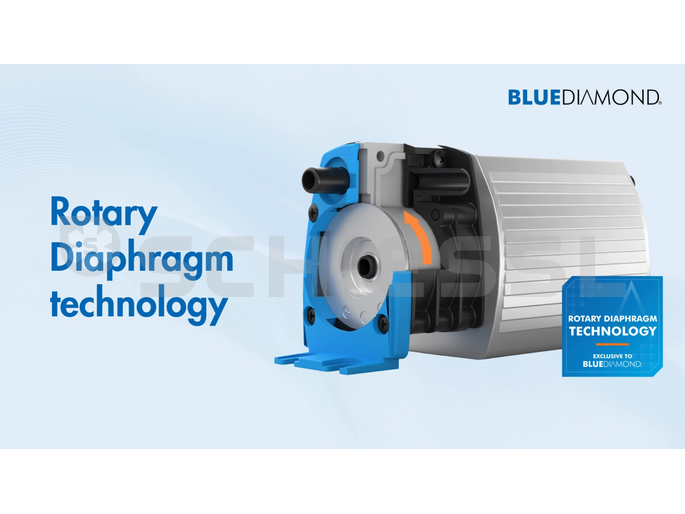

The MiniBlueTM condensate pump is a rotation membrane pump in the BlueDiamond range for use in split air conditioning systems with a power rating of up to 10 kW and guarantees reliable, uninterrupted operation. The MaxiBlueTM is slim enough to cable ducts, powerful enough for remote ...
The MiniBlueTM condensate pump is a rotation membrane pump in the BlueDiamond range for use in split air conditioning systems with a power rating of up to 10 kW and guarantees reliable, uninterrupted operation. The MaxiBlueTM is slim enough to cable ducts, powerful enough for remote installation and quiet enough for installation into false ceilings.
The pump unit consists of the pump itself with inlet and outlet nozzles (7.8 mm external diameter), the power supply and a three-core mains cable (2 m). The suction hose for the condensate pump can be directly connected to the drip tray on the split air conditioning system. A universal adapter is included for connecting to all common drip tray outlets.
Version:
MiniblueTM with temperature control
Control is via a hot and cold sensor for controlling the temperature difference with twin thermistor sensors as well as a cable (2 m) with connector plug. The condensate pump runs when the system is switched on
at a constant temperature difference of 5 °C, regardless of whether or not condensation is being produced. The safety circuit is inactive.
Features
- Entirely self-priming up to 5 m
- No float, no valves or filters - maintenance-free
- Silent and vibration-free operation
- Can safely run dry *
- Problem-free pump down of contaminants
- CE mark
* Dry operation for long periods can reduce the life of the pump
Accessories / Replacement parts
-
Condensate hose
-
Connection adapter/outlet nozzles
-
Connector
-
Continuous operation plug
-
Extension
-
Muffler
-
Tank sensor
-
Temperature sensor
-
Universal adapter
